Design Effect Ratio Diagnostics for Bayesian Survey Models • svyder

Design Effect Ratio Diagnostics for Bayesian Survey Models – Which parameters need survey correction?

Overview

When Bayesian hierarchical models are fitted to complex survey data, not all parameters are equally affected by the survey design. Some parameters (e.g., within-cluster covariates) are highly sensitive to unequal weighting and clustering, while others (e.g., random effects) are naturally protected by hierarchical shrinkage.

svyder computes parameter-level Design Effect Ratios (DER) that quantify how much each parameter’s posterior variance should change when the survey design is properly accounted for. It implements a three-step compute-classify-correct pipeline: DER values near 1 indicate well-calibrated posteriors; values substantially above 1 indicate underestimation of uncertainty.

Installation

You can install the development version of svyder from GitHub:

# install.packages("pak")
pak::pak("joonho112/svyder")

Quick Demo (5 minutes)

library(svyder)

# Load bundled NSECE-like survey data
data(nsece_demo)

# Run the full DER diagnostic pipeline
result <- der_diagnose(
  nsece_demo$draws,
  y = nsece_demo$y,
  X = nsece_demo$X,
  group = nsece_demo$group,
  weights = nsece_demo$weights,
  psu = nsece_demo$psu,
  family = "binomial",
  sigma_theta = nsece_demo$sigma_theta,
  param_types = nsece_demo$param_types
)

# Print summary
print(result)

The output shows which parameters are flagged for correction:

svyder diagnostic (54 parameters)
  Family: binomial | N = 6785 | J = 51
  DER range: [0.026, 3.891]
  Threshold (tau): 1.20
  Flagged: 2 / 54 (3.7%)

  Flagged parameters:
    beta[1]              DER = 1.465  [I-b] -> CORRECT
    beta[2]              DER = 3.891  [I-a] -> CORRECT

  Correction applied: 2 parameter(s) rescaled

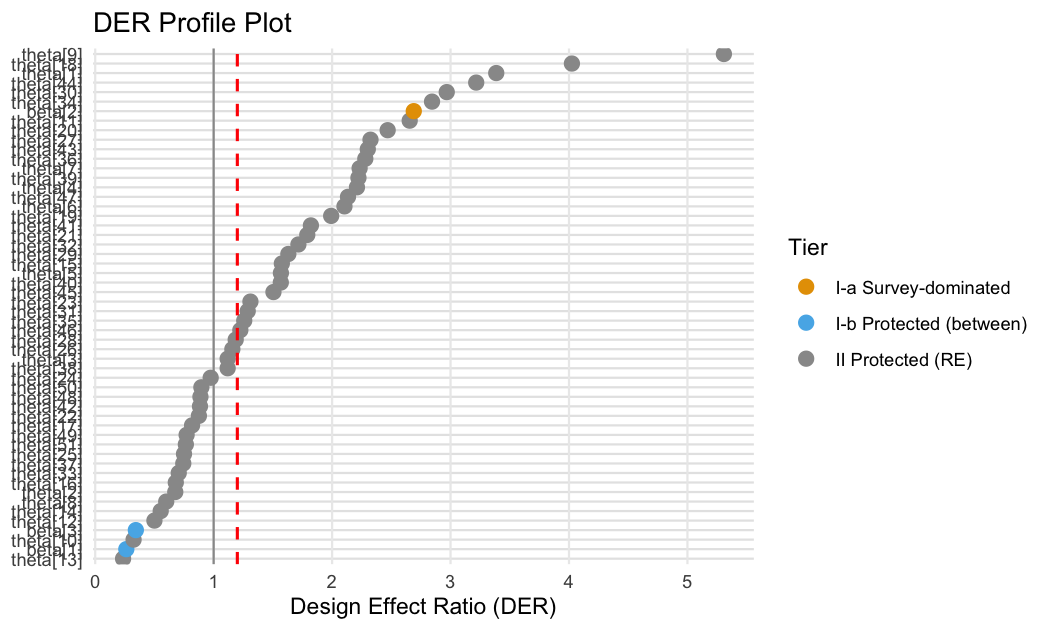

DER Profile Plot

Visualize the DER values across all parameters with tier-based coloring:

plot(result, type = "profile")

Decomposition

Understand why each parameter has its observed DER:

decomp <- der_decompose(result)
head(decomp[, c("param", "param_type", "der", "der_predicted")])

Tidy Output

svyder integrates with the tidyverse via broom-style methods:

# Per-parameter summary
tidy_df <- tidy(result)
head(tidy_df)

# Model-level summary
glance(result)

Backend Support

svyder works with multiple Bayesian modeling backends:

Backend	`der_compute()` method	Auto-detection
Matrix	`der_compute.matrix()`	–
brms	`der_compute.brmsfit()`	y, X, group, family, sigma_theta
cmdstanr	`der_compute.CmdStanMCMC()`	–
rstanarm	`der_compute.stanreg()`	y, X, group, family, sigma_theta

Key Functions

Function	Purpose
`der_diagnose()`	All-in-one pipeline (compute + classify + correct)
`der_compute()`	Compute DER values
`der_classify()`	Three-tier classification
`der_correct()`	Selective Cholesky correction
`der_decompose()`	Decompose DER into DEFF, B, R_k, kappa
`der_sensitivity()`	Threshold sensitivity analysis
`der_theorem_check()`	Verify theoretical predictions
`der_compare()`	Compare across clustering definitions

Citation

If you use svyder in your research, please cite:

Lee, J. (2026). Design Effect Ratios for Bayesian Survey Models: A Diagnostic Framework for Identifying Survey-Sensitive Parameters. arXiv preprint.

License

MIT
